OctoPerf Maven Plugin¶

OctoPerf integrates with Maven, a leading open-source solution for building and organizing software development.

See the OctoPerf Maven Plugin for more information.

Prerequisites¶

Maven can be downloaded and installed on any operating system.

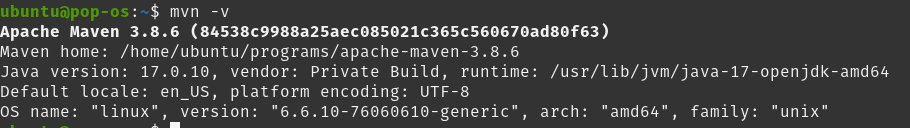

Run a mvn -v to make sure it is properly installed before you proceed:

Tip

If you're running maven from your favorite CI tool you do not need to go through this step since it will be taken care of by the CI tool itself.

Goals¶

Before we start, we need to pick one the goals provided by the OctoPerf Maven Plugin.

In this tutorial we will go for the octoperf:execute-scenario goal, this will allow us to execute a test from Maven.

Other goals allow you to use OctoPerf as a pure test runner and checkout your scripts from your source control prior to the test.

Configuration¶

Only one section remains to be completed: editing the pom.xml maven configuration file. Let's create the pom.xml with the configuration needed to run octoperf:execute-scenario (see octoperf:execute-scenario for more information):

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <packaging>pom</packaging>
  <groupId>com.octoperf</groupId>
  <artifactId>octoperf-test</artifactId>
  <version>1.0.0-SNAPSHOT</version>

  <build>
    <plugins>
      <plugin>
        <groupId>com.octoperf</groupId>
        <artifactId>octoperf-maven-plugin</artifactId>
        <version>2.4.0</version>
        <configuration>
              <apiKey>YOUR_API_KEY</apiKey>
              <workspaceName>WORKSPACE_NAME</workspaceName>
              <projectName>PROJECT_NAME</projectName>
              <scenarioName>SCENARIO_NAME</scenarioName>
            </configuration>
      </plugin>
    </plugins>
  </build>

  <!-- OctoPerf Maven Repository -->
  <pluginRepositories>
    <pluginRepository>
      <id>octoperf-snapshots</id>
      <name>OctoPerf Snapshots</name>
      <url>https://github.com/octoperf/maven-repository/raw/master/snapshots</url>
    </pluginRepository>
    <pluginRepository>
      <id>octoperf-releases</id>
      <name>OctoPerf Releases</name>
      <url>https://github.com/octoperf/maven-repository/raw/master/releases</url>
    </pluginRepository>
  </pluginRepositories>
</project>

We need to replace the placeholders WORKSPACE_NAME, PROJECT_NAME and SCENARIO_NAME with proper values. Those can be found using OctoPerf's UI.

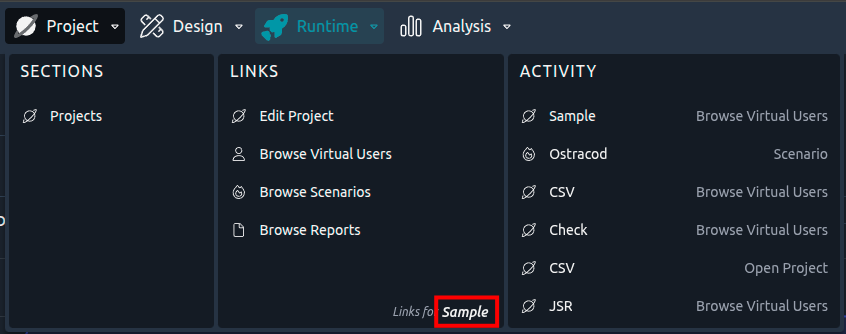

Where to get the parameters from OctoPerf

As a result we would have:

<configuration>
    <apiKey>YOUR_API_KEY</apiKey>
    <workspaceName>Demo</workspaceName>
    <projectName>MyProject</projectName>
    <scenarioName>Standard</scenarioName>
</configuration>

The API Key can be found on your User Profile.

For more information on possible configurations available, see Maven Plugin page.

Tip

It is possible to use the command line to pass a parameter to Maven, typically to keep your API key secure you might not want it in a static file. In this case, add -api YOUR_API_KEY to the command line and inside the POM file use ${api}.

Execution¶

This step can be achieved by running a command line interface or bash, pointing to the folder where your pom.xml is located. Then just run the command line specified in our documentation for this goal: mvn octoperf:execute-scenario

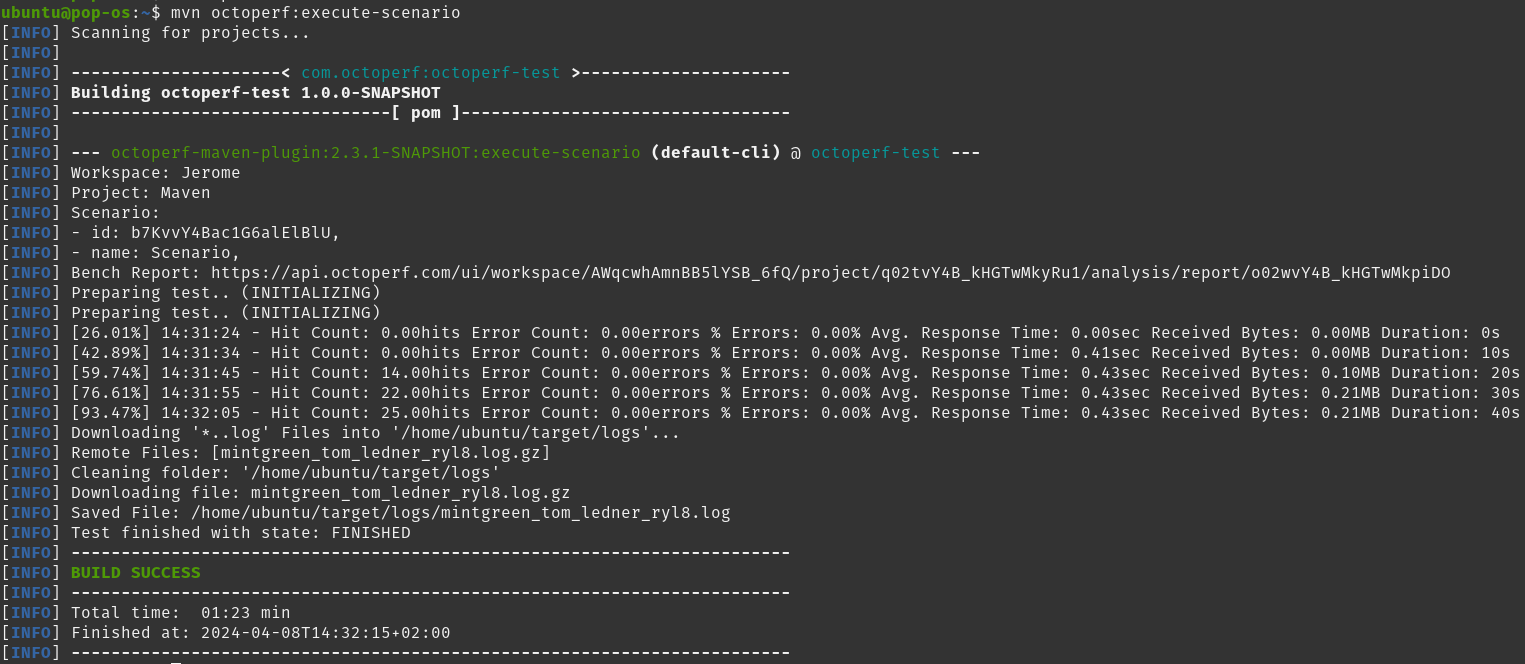

Maven test runs

When the test is finished or aborted you will see if the final result is on par with SLAs you defined:

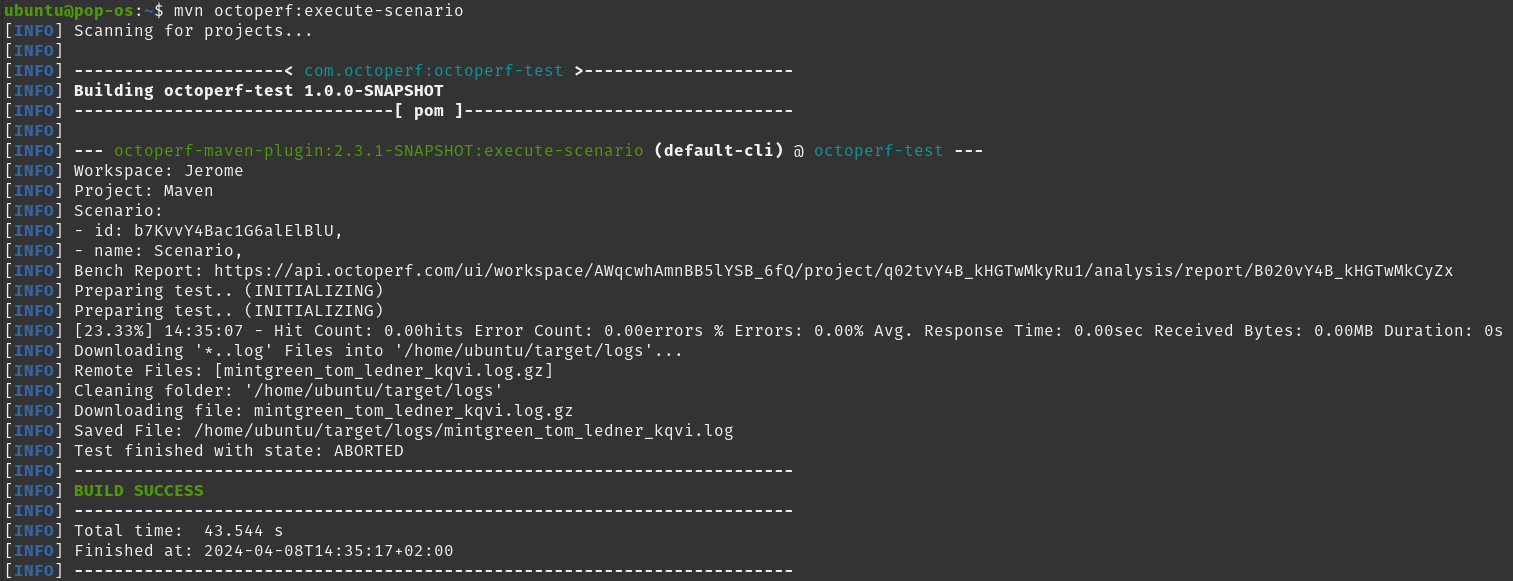

Maven test finished

The test logs and JUnit result will be downloaded automatically, along with the JTL result files if you activated them.

Ending the build¶

From plugin version 3.0.0, two parameters of execute-scenario decide how the build ends:

failIfNotFinished, true by default: a test that ends in ERROR or ABORTED fails the build. Up to 2.6.0, such a test ended the build in success.
timeoutMinutes, 0 by default: when the test has not ended after that many minutes, the plugin stops it and fails the build. 0 waits for the test to end, however long it takes.

Warning

A scenario with an Error in its scenario check never starts: execute-scenario fails the build at the launch, before any credit is consumed, with a message such as Scenario cannot run: Buyer in Paris: No agent running in this location. Open the scenario in OctoPerf to see the problems and fix them.

K6 scripts¶

The octoperf:import-k6 goal, from plugin version 3.0.0, imports a K6 script as a Virtual User and creates the scenario its options describe, one user profile per K6 scenario. Chained with wipe-project and execute-scenario, the script kept in your source control runs on OctoPerf at every build:

<plugin>
  <groupId>com.octoperf</groupId>
  <artifactId>octoperf-maven-plugin</artifactId>
  <version>3.0.0</version>
  <configuration>
    <apiKey>${api}</apiKey>
    <workspaceName>Demo</workspaceName>
    <projectName>MyK6Project</projectName>
    <providerName>OctoPerf</providerName>
    <location>eu-west-1</location>
    <k6Entrypoint>${project.basedir}/script.js</k6Entrypoint>
    <k6Modules>
      <k6Module>${project.basedir}/lib/api.js</k6Module>
    </k6Modules>
    <scenarioName>Scenario</scenarioName>
    <timeoutMinutes>30</timeoutMinutes>
  </configuration>
</plugin>

mvn octoperf:wipe-project octoperf:import-k6 octoperf:execute-scenario -Dapi=YOUR_API_KEY

Warning

wipe-project deletes every Virtual User, file and scenario of the project first, so that each build does not add another Virtual User and scenario of the same name. Give the pipeline a project of its own.

Parameter	Default	Description
`k6Entrypoint`	`${project.basedir}/script.js`	The script `k6 run` starts from.
`k6Modules`		The other scripts the entrypoint imports, all under the folder of the entrypoint. Each keeps its path relative to that folder, so the relative imports resolve.
`providerName`		Required. The load generator provider every user profile runs from, as named in the workspace.
`location`		Required. The location of that provider.
`scenarioName`	`Scenario`	The name of the created scenario, the one `execute-scenario` runs next.
`k6Executable`	`k6`	The `k6` binary: a bare name is looked up on the `PATH`, a relative path is resolved against the project.
`k6OptionsFile`		The output of `k6 inspect --execution-requirements`, read instead of running `k6`.
`failOnUnconverted`	`true`	Fails the build when part of the load does not convert as it is.

The options of the script are resolved on the build machine, by k6 inspect --execution-requirements, so k6 must be installed there, unless k6OptionsFile points at a saved output of that command. OctoPerf only converts the resolved options: the script is not run during the import.

The conversion follows the same rules as the web interface. Each part of the load that is not converted, approximated or ignored is logged as a warning and fails the build, unless failOnUnconverted is false. When no K6 scenario can be converted, the build fails whatever failOnUnconverted says.

For a complete overview of what you can achieve with this plugin, see the OctoPerf Maven Plugin documentation.
