K6 variables and data

The variables and files of the project reach a K6 Virtual User with nothing to configure: the constants and secrets are environment variables, and a module that OctoPerf generates next to the scripts, octoperf.js, gives access to the others.

Constants and secrets

Every constant and secret of the project is an __ENV entry of the script, under its name:

import http from 'k6/http';

export default function () {
  http.post(`${__ENV.BASE_URL}/login`, { user: __ENV.LOGIN, password: __ENV.PASSWORD });
}

The values are handed to K6 through its environment: they never appear on the command line of K6, in the environment of the container or in the logs of OctoPerf. A secret the script prints itself, with console.log, still lands in the K6 log as it is.

Info

The Environment of a K6 user profile adds __ENV entries of its own; an entry named like a project variable wins over the variable.

The octoperf.js module

import { run, vars, random, csv, row } from './octoperf.js';

Export	What the script gets
run	the identity of the test and of this load generator: benchResultId, regionId, injectorId, virtualUserName, userProfileIndex
vars	the constants and secrets, the same values as __ENV, as an object
random(name)	a new value of the random variable name at every call, an integer between its min and max, padded with zeros when its output format is a run of 0s
csv(name)	every row of the CSV variable name this load generator holds, as objects keyed by its column names, or by the header line of the file when the variable names no column
row(name)	the row of the CSV variable name for the current iteration

octoperf.js and every file name starting with __octoperf_ are reserved: OctoPerf generates those files next to the scripts, and a script cannot take one of their names. To run the scripts outside OctoPerf, download the Virtual User: the ZIP file carries a local copy of these files.

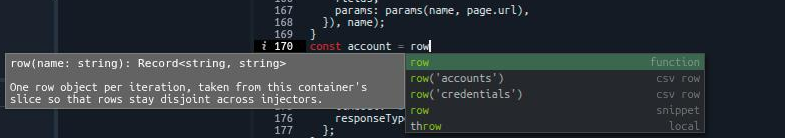

The code editor completes the variables of the project in these forms: __ENV.<name> for constants and secrets, row('<name>') for CSV variables, random('<name>') for random variables.

CSV data

import http from 'k6/http';
import { row } from './octoperf.js';

export default function () {
  const customer = row('customers');
  http.get(`${__ENV.BASE_URL}/customers/${customer.id}`);
}

• The sharing mode of the variable decides what each load generator gets:
  • Shared: the file is split between the load generators of the test, so two load generators never read the same row. A part keeps the header line when the file has one. Pick it for unique test data, such as accounts or orders. A file holding fewer rows than there are load generators is not split: each one gets it whole.
  • Private: every load generator gets the whole file. Pick it for reference data each load generator must walk whole, such as a catalog or a list of pages.
• row() hands out one row per iteration, in the order of the file, and starts over from the first row once it has read the last one. The rows are counted per load generator, not per virtual user: in Private mode, every load generator reads the same rows in the same order. It never ends an iteration: the Recycle on EOF and Stop thread on EOF settings of a CSV variable do not apply to K6.
• csv() returns every row of the load generator, loaded once, when the script starts: pick from it when the script needs its own order.

Warning

A CSV variable is split and sent to the load generators only when a script names it between quotes, like row('customers') or csv("customers"). A name built at run time, csv('cust' + 'omers') or a name read from a variable, leaves the file out of the load generators.

The virtual users of one K6 user profile are also split between its load generators by K6 itself, with --execution-segment: __VU numbers the virtual users of one load generator. Do not share out the data by hand from __VU, run.injectorId or the length of the file: the split already does it.

Project files

The files of the project sit next to the scripts, so a script opens one by its name:

const invoice = open('invoice.pdf', 'b');

The name of a file can come from a variable, like open(`batch-${__ENV.BATCH}.json`), as long as the file it names is a file of the project. A file opened this way is sent whole to every load generator, so every load generator reads the same rows: the sanity check warns when a script opens, other than in binary mode, a file that no CSV variable declares. Declare a CSV variable on it and read it with row() or csv() instead: in Shared mode to split it, in Private mode to keep sending it whole.

What K6 scripts do not get

• Counter variables: use __VU, which numbers the virtual user, __ITER, which numbers its iteration, or k6/execution, with exec.vu.idInTest and exec.scenario.iterationInTest. The sanity check refuses a script that references a counter variable.
